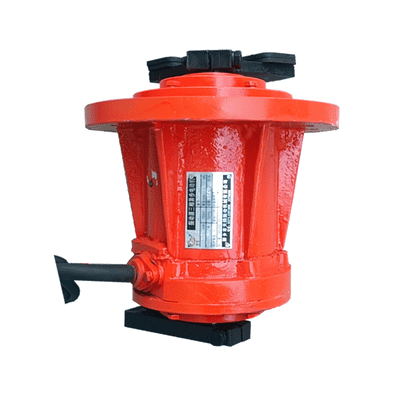

Medium frequency vibration motor

Shell material : Cast aluminum

Power : 1.5kw

Mounting hole : φ250mm

Mounting hole : φ18mm*6

Voltage : 380V/50Hz, customizable

Brand : TIANTENG

Medium frequency vibration motor is mainly used for circular vibration screen, ultrasonic vibration screen, rotary vibration mill, polishing machine, etc.The vibration motor adopts a cast aluminum cas

Send Inquiry

Description


Medium frequency vibration motor

Medium frequency vibration motor is mainly used for circular vibration screen, ultrasonic vibration screen, rotary vibration mill, polishing machine, etc.

The vibration motor adopts a cast aluminum casing with good heat dissipation and stable performance. The core adopts high-quality copper wire winding to support continuous operation. The vibration force is adjustable and not easy to be damaged.

Schematic diagram of vibration motor:


Technical parameters of vibration motor:

Model	Vibration force	Power	Installation distance	overall dimension	Weight	Rotational speed
TZS10-4	10000N	1.1kw	φ230mm	φ16mm*6	40kg	1500rpm
TZS15-4	15000N	1.5kw	φ250mm	φ18mm*6	35kg	1500rpm

RFQ:

Please tell us the size of the screening machine you need to install, and determine the installation size?
A： The installation distance is 250mm;

2. Please tell us what voltage you need?

B： Three-phase 380V50Hz;
