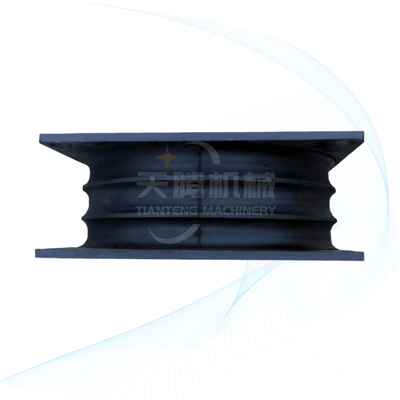

Shock absorber for cone crusher

Material: Rubber

Function: cushioning, shock absorption

Application: Crusher

Shock absorber for cone crusher Cone crusher shock absorber is an advanced hydraulic crusher with high power, high crushing ratio, and high productivity, suitable for fine crushing and ultrafin

Send Inquiry

Description

Shock absorber for cone crusher

Cone crusher shock absorber is an advanced hydraulic crusher with high power, high crushing ratio, and high productivity, suitable for fine crushing and ultrafine crushing of hard rocks, ores, manic materials, refractory materials, etc

Comparison Table of Common Models and Dimensions of Shock Absorbers

型号 Model	尺寸（mm） Size							最大荷载 Maximum load （kg）		最大剪切力 Maximum shear force （kg）		重量（kg）
型号 Model	A	K	H	d	t	h	R	40°IRH	60°IRH	40°IRH	60°IRH	重量（kg）
SAW123	118	148	52	13.5	5	3	5	2250	4500	240	570	2.6
SAW150	136	166	63	13.5	6	5	6	3750	7500	3300	850	4.1
SAW200	184	220	82	17	8	6	8	6000	12000	600	1200	9.2
SAW300	270	310	120	22	10	6	10	15000	30000	1575	3150	27
SAW500	450	520	130	27	16	8	16	35000	55000	3500	6000	92

Shear Apring

rubber flexible discs
