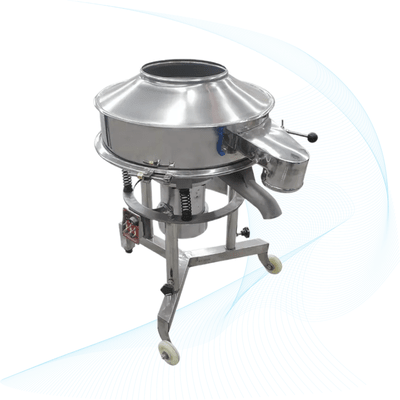

TT-GP High-Frequency Vibration Separtor

Material: SUS304 stainless steel

Diameter: 600mm

Voltage: 380V, 50HZ (or customized)

Product IntroductionThe high-frequency vibration separator has advantages of highscreening efficiency, small amplitude, low noise. Each of our machine isinstalled with universal wheels that makes the

Send Inquiry

Description


Product Introduction

The high-frequency vibration separator has advantages of highscreening efficiency, small amplitude, low noise. Each of our machine isinstalled with universal wheels that makes the machine move easily, itsheight is adjustable, easy to operate but hard to be damaged. IP54 protection rank, F level insulation, even ifthemotor works 24 hours a day, it also can have long service life, and the motor can run in the bad environment.

Advantage features

Small size, light weight, easy to move, and the height can be adjusted freely.
High screening precision, high eficiency, applicable to any powder, particle and adhesive liquid materials
The vibrating frequency is up to 3000 times/min. The unit can achieve more obvious screening effect wherscreening materials with fine granularity and high viscosity.
The unique mesh structure is convenient and easy to install and change the mesh.
All components of this unit excluding the motor are made of stainless steel.
Technical Parameter

Model Power Effective sieve surface diameter
Maximum vibration force
GP-600 0.37kw 550mm 5000N
GP-800
0.55kw
760mm 8000N
GP-1000
0.75kw
930mm 10000N
GP-1200
1.1kw
1130mm 15000N

Slurry domineering screening machine

Forced vibrating screen

Model	Power	Effective sieve surface diameter	Maximum vibration force
GP-600	0.37kw	550mm	5000N
GP-800	0.55kw	760mm	8000N
GP-1000	0.75kw	930mm	10000N
GP-1200	1.1kw	1130mm	15000N
